Union Cross

Bronze Union Cross, Brass Union Cross, Bronze Union Cross Supplier, Union Cross Stockist, Tube to Union - Union Cross UC Exporter.

We Wao-loc Instrumentations are the reckoned Supplier, Trader and Exporter of supreme quality Union Corss, Bronze Union Cross etc. We use high quality raw material and technology for the manufacturing of these Union Cross as per the set quality standards. We also offer these Union Brass are available in different grades, size, specification & thickness as per the clients requirements.

Union Cross Manufacturer, Brass Union Cross Exporter, Bronze Union Cross Dealer, Brass Union Cross Wholesaler, Union Cross Stockist in Mumbai, India.

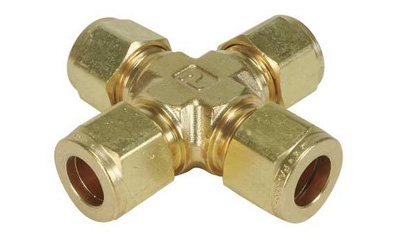

Stainless Steel Union Cross

Stainless Steel Union Cross

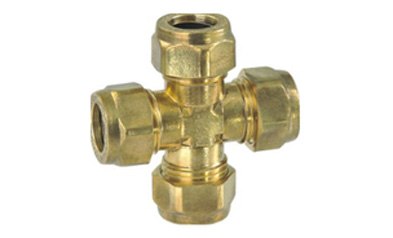

Monel Union Cross

Monel Union Cross

Union Cross – Metric tubing
Tube
O.D
(mm) 		Part Number A C L W
(inch) 		Min.
bore
(mm)
mm mm mm
3 3MUC 46.8 23.4 16.8 7/16 2.4
4 4MUC 48.2 24.1 17.5 7/16 3.0
6 6MUC 51.6 25.8 18.3 7/16 4.8
8 8MUC 56.2 28.1 20.6 9/16 6.4
10 10MUC 66.0 33.0 25.4 3/4 7.9
12 12MUC 69.4 34.7 24.6 3/4 9.5
16 16MUC 72.6 36.3 26.2 7/8 12.7
18 18MUC 79.0 39.5 29.4 1.1/16 15.1


Union Cross – Imperial tubing
Tube
O.D
(mm) 		Part Number A C L W
(inch) 		Min.
bore
inch mm inch mm inch mm inch mm
1/8 2UC2 1.81 46.0 0.91 23.0 0.66 16.8 7/16 0.09 2.3
3/16 3UC3 1.88 47.8 0.94 23.9 0.69 17.5 7/16 0.13 3.3
1/4 4UC4 2.03 51.6 1.02 25.9 0.72 18.3 7/16 0.19 4.8
5/16 5UC5 2.21 56.6 1.10 27.9 0.81 20.6 9/16 0.25 6.4
3/8 6UC6 2.27 57.7 1.13 28.7 0.84 21.3 9/16 0.28 7.1
1/2 8UC8 2.71 68.8 1.35 34.3 0.97 24.6 3/4 0.41 10.4
5/8 10UC10 2.89 73.4 1.44 36.6 1.06 26.9 7/8 0.50 12.7
3/4 12UC12 3.09 78.5 1.54 39.1 1.16 29.5 1.1/16 0.63 16.0
7/8 14UC14 3.27 83.1 1.63 41.4 1.25 31.8 1.5/16 0.75 19.1
1 16UC16 3.82 97.0 1.91 48.5 1.44 36.6 1.5/16 0.88 22.4
For Any Query : Contact Us

We Have Ready Stock of Brass and Bronze Tube Union Cross in Below Sizes :


BRASS TUBE UNION 1/2" OD x 3/4" OD
BRASS TUBE UNION 3/4" OD x 3/4" OD
BRASS TUBE UNION 1" OD x 1" OD
BRASS TUBE UNION 3/8" OD x 1/8" OD
BRASS TUBE UNION 1/4" OD x 1/16" OD
BRASS TUBE UNION 1/8" OD x 1/16" OD
BRASS TUBE UNION 1/4" OD x 1/8" OD
BRASS TUBE UNION 1/4" OD x 3/8" OD
BRASS TUBE UNION 3/8" OD x 3/8" OD
BRASS TUBE UNION 1/8" OD x 3/8" OD
BRASS TUBE UNION 1/2" OD x 3/8" OD
BRASS TUBE UNION 1/2" OD x 1/2" OD
BRASS TUBE UNION 1" OD x 3/4" OD
BRASS TUBE UNION 1/4" OD x 1/2" OD
BRASS TUBE UNION 3/8" OD x 1/4" OD
BRASS TUBE UNION 1/4" OD x 1/4" OD
BRASS TUBE UNION 3/4" OD x 1/2" OD
BRASS TUBE UNION 1/16" OD x 1/8" OD
BRASS TUBE UNION 3/8" OD x 3/4" OD
BRASS TUBE UNION 1/16" OD x 1/4" OD
BRASS TUBE UNION 1/2" OD x 1/8" OD
BRASS TUBE UNION 1/2" OD x 1/4" OD
BRASS TUBE UNION 3/4" OD x 1" OD
BRASS TUBE UNION 1/2" OD x 1" OD
BRASS TUBE UNION 1/8" OD x 1/8" OD
BRASS TUBE UNION 5/8" OD x 1/2" OD
BRASS TUBE UNION 1/8" OD x 1/2" OD
BRASS TUBE UNION 1/16" OD x 1/16" OD
BRASS TUBE UNION 3/8" OD x 1/2" OD
BRASS TUBE UNION 1/8" OD x 1/4" OD
BRONZE TUBE UNION 1/4" OD x 1/16" OD
BRONZE TUBE UNION 1/16" OD x 1/8" OD
BRONZE TUBE UNION 3/8" OD x 1/8" OD
BRONZE TUBE UNION 1/2" OD x 3/8" OD
BRONZE TUBE UNION 1/4" OD x 1/8" OD
BRONZE TUBE UNION 1/4" OD x 1/4" OD
BRONZE TUBE UNION 1/8" OD x 1/4" OD
BRONZE TUBE UNION 3/8" OD x 1/2" OD
BRONZE TUBE UNION 3/8" OD x 3/8" OD
BRONZE TUBE UNION 3/4" OD x 1" OD
BRONZE TUBE UNION 3/8" OD x 1/4" OD
BRONZE TUBE UNION 1/4" OD x 1/2" OD
BRONZE TUBE UNION 1/16" OD x 1/16" OD
BRONZE TUBE UNION 1/8" OD x 1/8" OD
BRONZE TUBE UNION 1/8" OD x 1/16" OD
BRONZE TUBE UNION 1" OD x 3/4" OD
BRONZE TUBE UNION 1/4" OD x 3/8" OD
BRONZE TUBE UNION 5/8" OD x 1/2" OD
BRONZE TUBE UNION 1/2" OD x 1/4" OD
BRONZE TUBE UNION 1/8" OD x 1/2" OD
BRONZE TUBE UNION 1/2" OD x 3/4" OD
BRONZE TUBE UNION 1" OD x 1" OD
BRONZE TUBE UNION 1/2" OD x 1/2" OD
BRONZE TUBE UNION 3/8" OD x 3/4" OD
BRONZE TUBE UNION 1/2" OD x 1/8" OD
BRONZE TUBE UNION 1/8" OD x 3/8" OD
BRONZE TUBE UNION 1/16" OD x 1/4" OD
BRONZE TUBE UNION 3/4" OD x 3/4" OD
BRONZE TUBE UNION 3/4" OD x 1/2" OD
BRONZE TUBE UNION 1/2" OD x 1" OD
